Ceramic Expression
Beyond Imagination
NEW PB-600, PB-400 Powder 3D Printer
The PB-600/PB-400 binder jet Powder 3D Printer series produces creative and complex three-dimensional objects in high definition beautifully and efficiently. Its artistic and elaborate expressive power expands creative possibilities and brings innovation to the manufacturing process of ceramic products.
- Allows anyone to easily produce difficult shapes that could previously only be created by skilled craftsmen and complex models that cannot be manufactured by hand or milling machines.
- Available in two sizes for a wide variety of applications.
- High quality finish is achieved by using Brightorb, a special ceramic powder with fine particles.
Value-added Applications Created by the PB Series

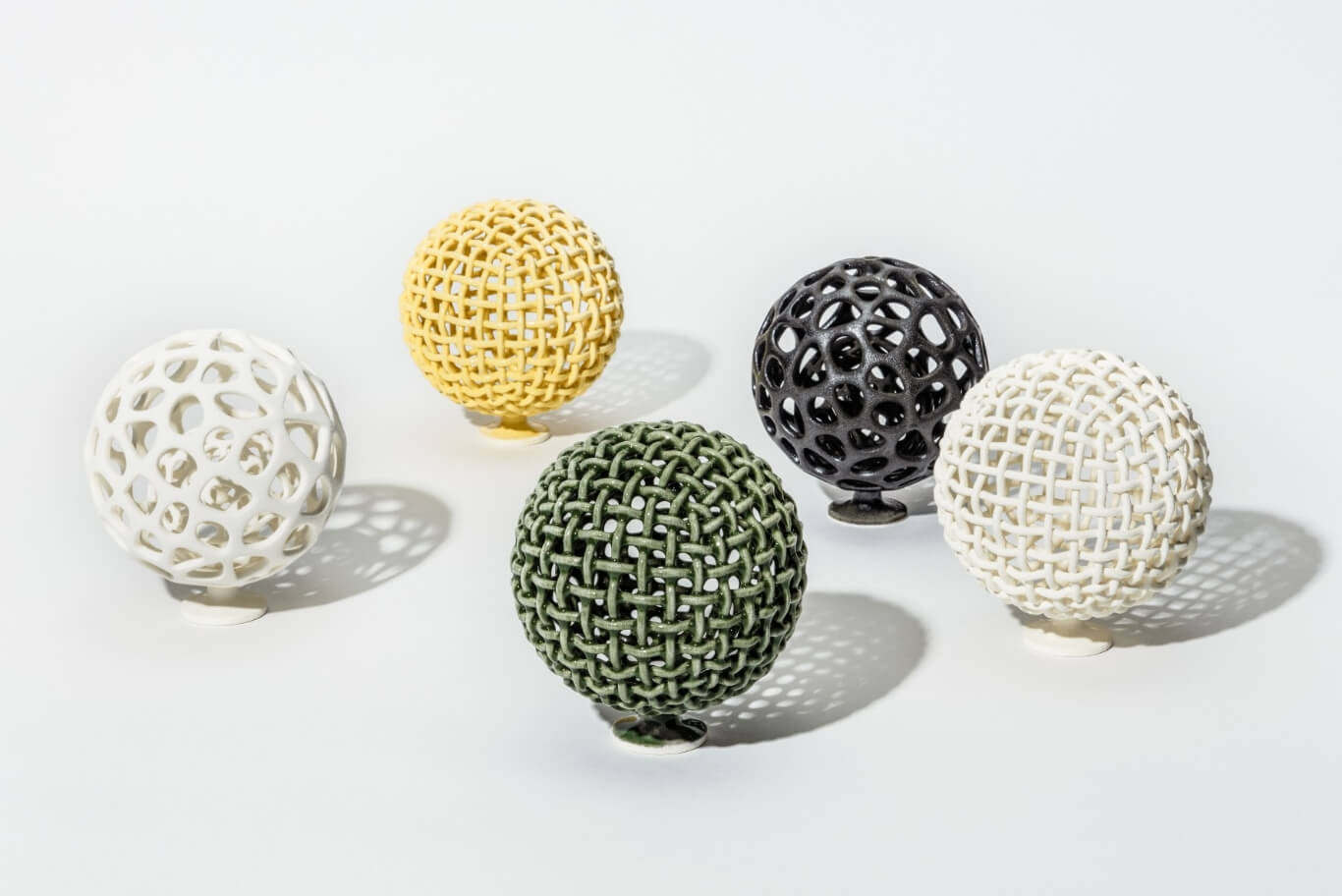

Creativity
The PB series is a binder jet type 3D printer that produces 3D objects by ejecting liquid binders from the print head and layering ceramic powder while fixing it layer by layer. It enables anyone to easily produce difficult shapes that could previously only be created by craftsmen, as well as complex models that cannot be manufactured by hand or with milling machines.
Productivity
The PB-600 offers a build volume of 89.2 litres, while the PB-400 provides 22.6 litres of capacity. By laying out several different modelling objects, a large object or several smaller ones can be produced at once. Powder material remaining in the main unit after output can be reused for the next modelling task for low-cost operation.
Precision
Brightorb, a special ceramic powder, consists of fine particles to produce excellent performance with less than 1% shrinkage during firing, which is essential for ceramic modelling. In addition, the PB series stands out for its unique ability to print with impressive precision, delivering high-definition objects and an exceptionally smooth surface finish, thanks to its capability to print at 0.1 mm layer pitch.
Operation
The printer includes slicing software that converts 3D data created with 3D CAD or 3D CG software into output data. It can also be operated intuitively from a monitor attached to the product itself, making it easy even for first-time users.
General workflow and main ancillary equipment
Making 3D Data
Printing
Cleaning
Impregnation
Firing
Post-processing
PB-600
|
PB-400
|
|---|---|
|
BUILD SIZE
595mm × 600mm × 250mm
|
BUILD SIZE
390mm × 290mm × 200mm
|
|
Z AXIS RESOLUTION
0.1 mm
|
Z AXIS RESOLUTION
0.1 mm
|
|
BUILD SPEED
35 second / layer
|
BUILD SPEED
45 second / layer
|
Features Summary
Creative Ceramic Design
Unleash full design freedom with the ability to produce complex, intricate ceramic forms that exceed the limits of traditional craftsmanship.
Accelerated Production Times
Achieve faster build rates than typical additive manufacturing, making high-volume ceramic output more efficient and cost-effective.
High-Precision Ceramic Prints
Advanced ceramic powder with under 1% shrinkage ensures high-definition, ultra-smooth prints with fine detail at 0.1 mm layer pitch.
Quick Set-up and Operation
Start printing straight out of the box—simple, fast initialisation means you’re ready to work with minimal technical preparation.
Expert Support Included
Take your business forward with complete peace of mind thanks to Roland DG's renowned post-sales service, expert care, and technical support.
Flexible Size Options Available
Choose the right fit for your space or workload with two distinct models—compact for smaller setups, or larger for higher production needs.
Additional Information
Specifications
| PB-600 | PB-400 | ||
|---|---|---|---|
| Build Technology | Binder Jetting Method | ||
| XY Resolution (dots per inch) | 600 x 600 dpi | ||
| Layer Pitch | 0.1 mm (0.0039 in.) | ||
| Build Speed | 35 seconds/layer | 45 seconds/layer | |
| Build Size | Width | Max. 595 mm (23.4 in.) | Max. 390 mm (15.4 in.) |
| Depth | Max. 600 mm (23.6 in.) | Max. 290 mm (11.4 in.) | |
| Height | Max. 250 mm (9.8 in.) | Max. 200 mm (7.9 in.) | |
| Powder Materials | Ceramic Powder | ||
| Binder | Water-Based Liquid Binder | ||
| Environment | During operation |
Temperature: 20°C to 24°C (68°F to 75.2 °F) Humidity: Max. 50%RH (no condensation) 20°C (68°F), and small temperature changes are recommended |
|
|
Not Operating *1 |
Temperature: 5°C to 40 °C (41°F to 104 °F) Humidity: 20% RH to 80% RH (no condensation) |
||
|
Distance Accuracy (with correction) |
Error of less than ±0.3% of distance travelled or ±0.5 mm (0.0196 in.), whichever is greater | ||
|
Dimensions (Width x Depth x Height) |
3,150 mm × 1,344 mm × 1,900 mm (124.0 in. × 52.9 in. × 74.8 in.) excluding PC arm stand |
1,709 mm × 970 mm × 1,382 mm (67.3 in. × 38.2 in. × 54.4 in.) excluding PC arm stand |
|
| Weight | 1,200 kg (2,645 lb.) | 430 kg (947 lb.) | |
| Power Supply | AC 230V Single Phase 16A | ||
| Included items | User’s Manual, Slice Software, PC for Printer Control Software and Monitor, etc. | ||
- *1 The condition during operation is applied when powder is filled.
| System requirements for Slice Software | |
|---|---|
| Operating system | Windows 10/11 |
| Processor | Core i5 Generation 8 or more |
| Memory (RAM) | 8 GB or more |
| Video card and monitor | NVIDIA GeforceRTX 3060 or more (Pro graphics card not supported) |
Brochure
Download Your PB-600/400 Brochure
Get your digital guide to all the features, applications, benefits and specifications of the Powder 3D Printer.
